Sync tree database table over Apache Kafka

2020-04-19kafka-connect-jdbckafkatestcontainerspostgresql

Showcase on how to eventually sync hierachical data from a source database table towards a sink database table via Apache Kafka in a untainted fashion without intermittently having corrupt content on the sink database table.

UPDATE 2020-05-28

The problem showcased here can be solved also by using the new JDBC Nested Set Sink Connector for Kafka Connect. Check out the following blog post for more details on the JDBC Nested Set Sink Connector :

Nested Set Model

There are multiple ways of storing and reading hierarchies in a relational database:

  • adjacency list model: each tuple has a parent id pointing to its parent

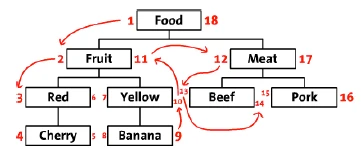

  • nested set model: each tuple has left and right coordinates corresponding to the preordered representation of the tree

Details about the advantages of the nested set model are already very well described in the following article:

https://www.sitepoint.com/hierarchical-data-database/

TLDR As mentioned on Wikipedia

The nested set model is a technique for representing nested sets (also known as trees or hierarchies) in relational databases.

Syncing nested set models over Apache Kafka

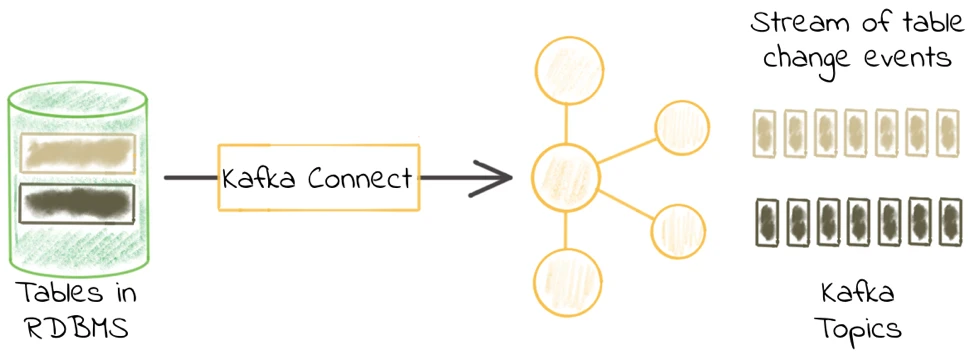

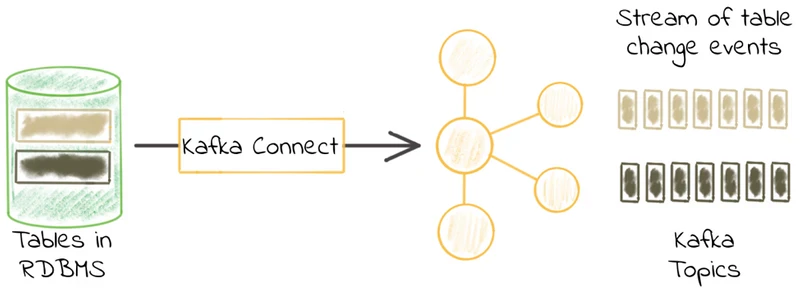

Kafka Connect is an open source component of Apache Kafka which in a nutshell, as described on Confluent blog provides the following functionality for databases:

It enables you to pull data (source) from a database into Kafka, and to push data (sink) from a Kafka topic to a database.

More details about kafka-connect-jdbc connector can be found on the Conflent documentation.

Syncing of nested set model from the source database to Apache Kafka can be easily taken care of by a kafka-connect-jdbc source connector which can be initialized by posting the following configuration to the /connectors endpoint of Kafka Connect (see Kafka Connect REST interface)

{
    "name": "findinpath",
    "config": {
        "connector.class": "io.confluent.connect.jdbc.JdbcSourceConnector",
        "mode": "timestamp+incrementing",
        "timestamp.column.name": "updated",
        "incrementing.column.name": "id",
        "topic.prefix": "findinpath.",
        "connection.user": "sa",
        "connection.password": "p@ssw0rd!source",
        "validate.non.null": "false",
        "tasks.max": "1",
        "name": "findinpath",
        "connection.url": "jdbc:postgresql://source:5432/source?loggerLevel=OFF",
        "table.whitelist": "nested_set_node"
    }
}

NOTE in the configuration above, the tasks.max is set to 1 because JDBC source connectors can deal only with one SELECT statement at a time for retrieving the updates performed on a table. It is advisable to use also for Apache Kafka a topic with only 1 partition for syncing the nested set content towards downstream services.

Refresh the nested set model on the sink database

On the sink database side there needs to be implemented a mechanism that contains a safeguard for not adding invalid updates to the nested set model. A concrete example in this direction is when going from the nested set model:

|1| A |2|

to the nested set model (after adding two children)

|1| A |6|
    ├── |2| B |3|
    └── |4| C |5|

In the snippets above the tree node labels are prefixed by their left and right nested set model coordinates.

Via kafka-connect-jdbc the records corresponding to the tuple updates may come in various ordering:

| label | left | right |
|-------|------|-------|
| A     | 1    | 6     |
| B     | 2    | 3     |
| C     | 4    | 5     |

or

| label | left | right |
|-------|------|-------|
| B     | 2    | 3     |
| C     | 4    | 5     |
| A     | 1    | 6     |

or any other combinations of the three tuples listed above because the records are polled in batches of different sizes from Apache Kafka.

Going from the nested set model table content

| label | left | right |
|-------|------|-------|
| A     | 1    | 2     |

towards

| label | left | right |
|-------|------|-------|
| A     | 1    | 6     |

or

| label | left | right |
|-------|------|-------|
| A     | 1    | 6     |
| B     | 2    | 3     |

would intermittently render the nested set model corrupt until all the records from the source nested set model are synced over Apache Kafka.

Using a kafka-connect-jdbc sink connector is therefor out of the question for syncing the contents of trees from a source service towards downstream online services.

One solution to cope with such a problem would be to separate the nested set model from what is being synced over Apache Kafka.

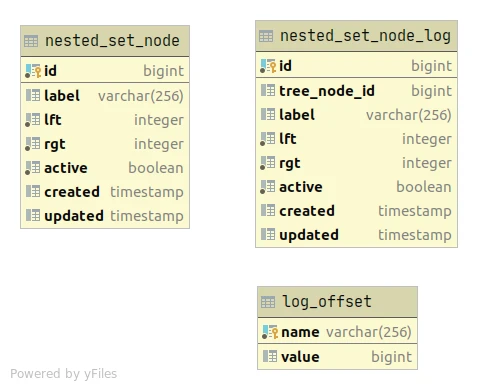

In the table diagram above, the nested_set_node_log table is an INSERT only table in which is written whenever a new record(s) is read from Apache Kafka. The log_offset table has only one tuple pointing to the last nested_set_node_log tuple id processed when updating the nested_set_node table.

Whenever new records are read from Apache Kafka, there will be a transactional attempt to apply all the updates from nested_set_node_log made after the saved entry in the log_offset table to the existing configuration of the nested_set_node nested set model.

If the applied updates lead to a valid nested set model configuration, then the nested_set_node table will be updated and the log offset will be set to the latest processed nested_set_node_log entry, otherwise the nested_set_node table stays in its previous state.

Caching

On the sink side is implemented the Guava’s Cache for avoiding to read each time from the persistence the contents of the nested set model. This approach nears the usage on a productive system, where the contents of the nested set model are cached and not read from the database for each usage.

When there are new contents added to the nested set model, the cache is notified for invalidating its contents.

JDBC Transactions

One of the challenges faced before implementing this proof of concept was whether to use spring framework to wrap the complexities of dealing with JDBC. It is extremely appealing to use production ready frameworks and not care about their implementation complexity.

The decision made in the implementation was to avoid using spring and JPA and go with plain old JDBC.

Along the way in the implementation, one open question was whether to group all the JDBC complexity in one repository or in multiple repositories. Due to the fact that multiple repositories bring a better overview in the maintenance, the decision was made to go with multiple repositories.

There were some scenarios which involved transaction handling over multiple DAO objects. The possible ways of handling transactions over multiple repositories is very well described in the stackexchange post:

https://softwareengineering.stackexchange.com/a/339458/363485

The solution used to cope with this situation within this proof of concept was to create repositories for each service operation and inject the connection in the repositories.

Dependency injection of connection: Your DAOs are not singletons but throw-away objects, receiving the connection on creation time. The calling code will control the connection creation for you.

PRO: easy to implement

CON: DB connection preparation / error handling in the business layer

CON: DAOs are not singletons and you produce a lot of trash on the heap (your implementation language may vary here)

CON: Will not allow stacking of service methods

Testing

It is relatively easy to think about a solution for the previously exposed problem, but before putting it to a production environment the solution needs propper testing in conditions similar to the environment in which it will run.

This is where the testcontainers library helps a great deal by providing lightweight, throwaway instances of common databases that can run in a Docker container.

More details on how to perform integration tests involving kafka-connect-jdbc can be found on the blog post:

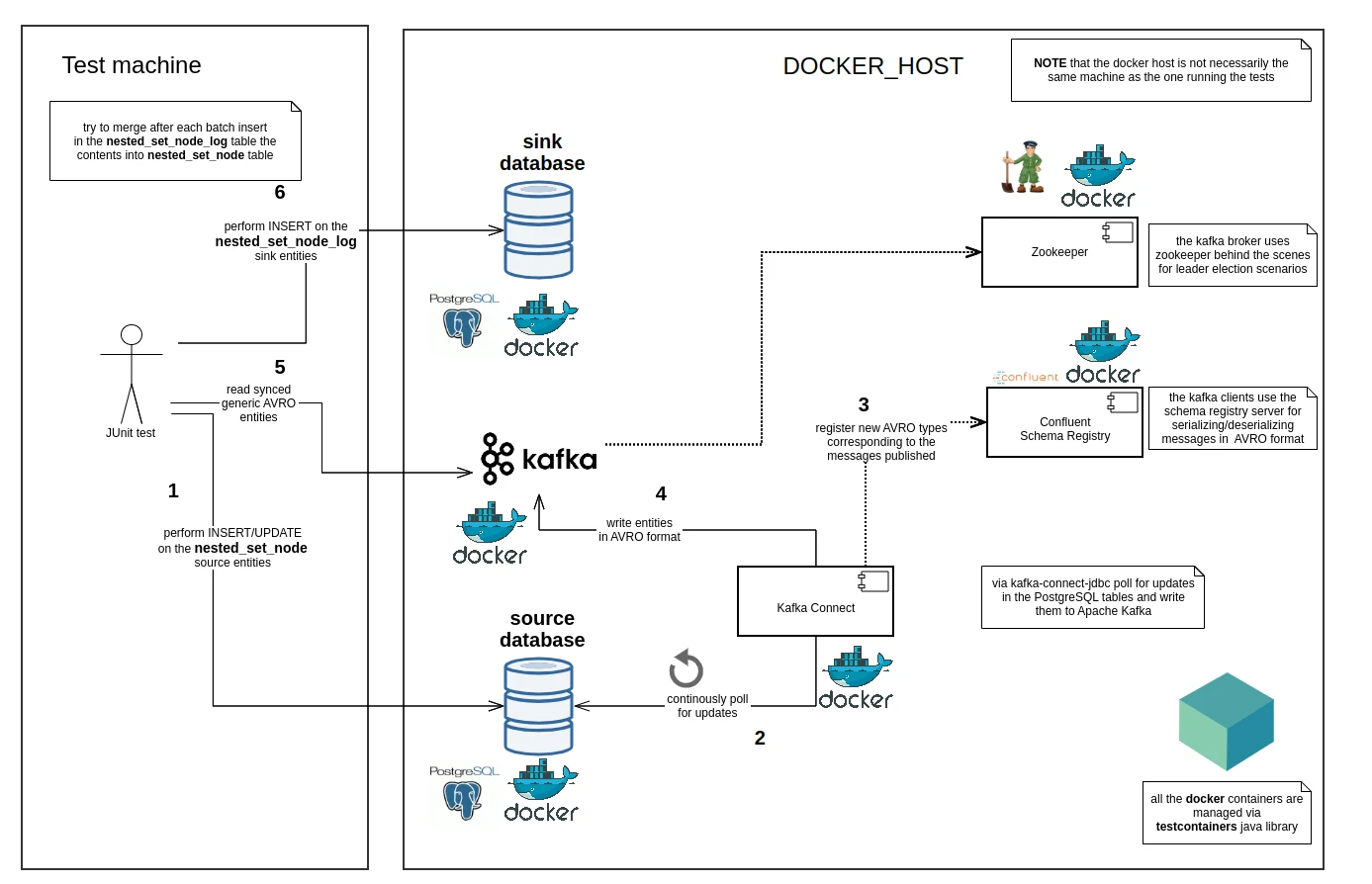

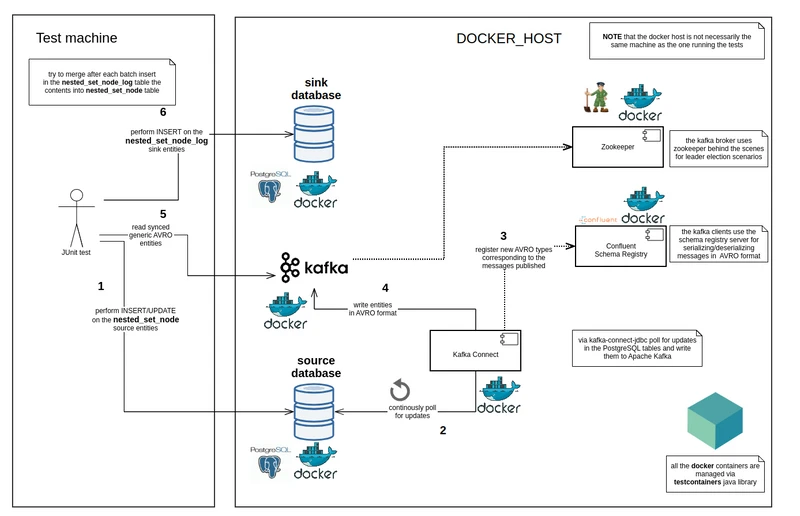

Docker containers are used for interacting with the Apache Kafka ecosystem as well as the source and sink databases.

This leads to tests that are easy to read and allow the testing of the sync operation for various nested set models

    /**
     *   Ensure that the sync the content of a more complex nested set model
     *   is performed successively each time after performing updates on the
     *   nested set model on the source database.
     */
    @Test
    public void syncingSuccessiveChangesToTheTreeDemo() {

        var clothingNodeId = sourceNestedSetService.insertRootNode("Clothing");
        awaitForTheSyncOfTheNode(clothingNodeId);
        logSinkTreeContent();

        // The current structure of the tree should be:
        // |1| Clothing |2|


        // Add now Men's and Women's children and wait for the syncing
        var mensNodeId = sourceNestedSetService.insertNode("Men's", clothingNodeId);
        var womensNodeId = sourceNestedSetService.insertNode("Women's", clothingNodeId);

        awaitForTheSyncOfTheNode(womensNodeId);
        logSinkTreeContent();

        // The current structure of the tree should be:
        // |1| Clothing |6|
        //     ├── |2| Men's |3|
        //     └── |4| Women's |5|



        // Add new children categories for both Men's and Women's nodes
        sourceNestedSetService.insertNode("Suits", mensNodeId);
        sourceNestedSetService.insertNode("Dresses", womensNodeId);
        sourceNestedSetService.insertNode("Skirts", womensNodeId);
        sourceNestedSetService.insertNode("Blouses", womensNodeId);

        awaitForTheSyncOfTheNode(womensNodeId);
        logSinkTreeContent();
        // The current structure of the tree should be:
        //   |1| Clothing |14|
        //       ├── |2| Men's |5|
        //       │       └── |3| Suits |4|
        //       └── |6| Women's |13|
        //               ├── |7| Dresses |8|
        //               ├── |9| Skirts |10|
        //               └── |11| Blouses |12|
    }

See DemoNestedSetSyncTest for several syncing test cases.

This project provides a functional prototype on how to setup the whole Confluent environment (including Confluent Schema Registry and Apache Kafka Connect) via testcontainers.

See AbstractNestedSetSyncTest and the testcontainers package for details.

Kafka Connect

In order to use the Confluent’s Kafka Connect container, this project made use of the already existing code for KafkaConnectContainer on ydespreaux Github account.

NOTE that the KafkaConnectContainer class previously mentioned has also corresponding test cases within the project lib-kafka-connect in order to have a clue on how to interact in an integration test with the container.

Sample code

Checkout the github project sample project nested-set-kafka-sync and try out the tests via

mvn clean test
