Historize the status changes performed on the database entities an obtain the date ranges corresponding to the validity of each status in which the entity has been during its lifecycle.

Let’s use a fictional example of an online ecommerce store, where the orders table in the database backing the store is be one of the core entities.

An order can find itself, throughout its lifecycle in one of the statuses:

• placed
• shipped
• completed
• return_pending
• returned

The content of the orders table could be ingested in a data warehouse environment in order to perform several reports concerning the performance of the ecommerce store.

Nowadays a key aspect in ecommerce is the delivery time, or more concretely in the case of our fictional ecommerce store, the period of time in which an order is marked with the status shipped (order has been shipped to the customer and is currently in transit).

The data warehouse environment could be therefore used to answer several questions that focus on the shipment:

• What is the amount of orders that were marked in shipment during a certain day? If the trend of the orders in shipment doesn’t follow closely the trend of completed orders then the ecommerce shop has a growing number of unsatisfied customers.
• How many orders took more than 3 business days during a certain month? Identify whether there the service level agreement for deliveries is not being respected.
• What is the highest amount in days for an order in shipment during a certain month? From an operational perspective this number should be kept as low as possible. Possible spikes above the average should trigger automatic alerts for the person responsible on the deliveries.

For the sake of having a concrete example, let’s suppose that the structure of the staging table in the data warehouse environment that corresponds for the orders database table from the ecommerce store would have the following columns:

• load_id: monotonically increasing sequence for the order changes
• order_id: the order identifier
• updated_at: the date when the order was updated
• status: completion status of the order

Let’s try to answer the following question:

What is the amount of orders that were marked in shipment during a certain day?

NOTE that a shipment can take multiple days until the package reaches the customer and the order is marked as completed.

A naive answer would be to count the distinct orders from the staging table where status shipped is appearing during the specified day (e.g.: 2018-01-01)

SELECT COUNT(DISTINCT order_id)
FROM jaffle_shop.stg_orders
WHERE updated_at BETWEEN '2018-01-01' AND '2018-01-02'
AND status = 'shipped';

In this case the orders that started being shipped before the 2018-01-01 and completed during or after this day would not be taken into account.

One possible solution in order to the question previously mentioned would be to historize the status changes performed on the orders.

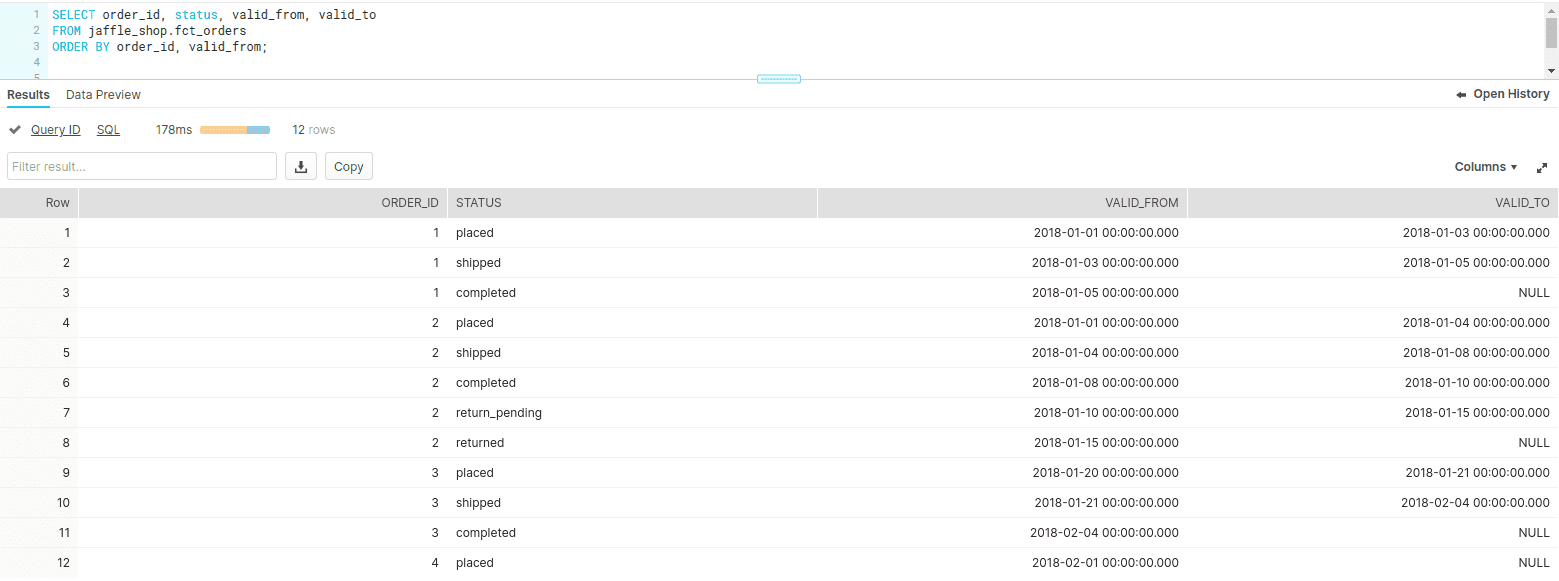

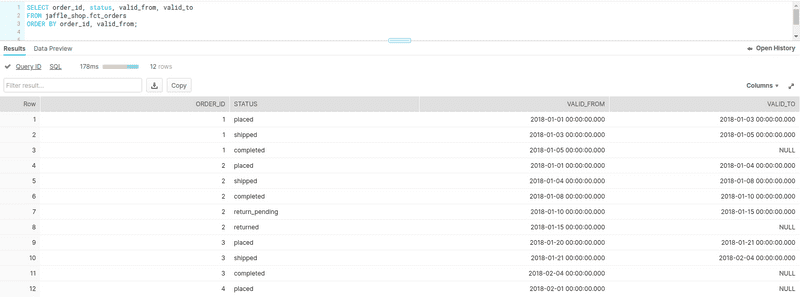

The image below contains historized order status changes. Note that the [valid_from, valid_to] date ranges corresponding to an order are adjacent to each other and only the latest entry corresponding to an order is unbounded (valid_to is set to NULL):

This technique allows to easily find the shipment date ranges that overlap with the day on which the number or orders in shipment needs to be calculated:

SELECT COUNT(DISTINCT(order_id))
FROM jaffle_shop.fct_orders
WHERE valid_from < '2018-01-02' AND (valid_to >= '2018-01-01' OR valid_to IS NULL)
AND status = 'shipped';

This post provides a proof of concept on how to historize order status changes with dbt models on Snowflake data warehouse environment.

Getting started with dbt

As described in the introduction to dbt :

dbt (data build tool) enables analytics engineers to transform data in their warehouses by simply writing select statements. dbt handles turning these select statements into tables and views.

dbt does the T in ELT (Extract, Load, Transform) processes – it doesn’t extract or load data, but it’s extremely good at transforming data that’s already loaded into your warehouse.

The jaffle_shop project is a useful minimum viable dbt project to get new dbt users up and running with their first dbt project. It includes seed files with generated data so that a user can run this project on their own warehouse.

For more information on dbt:

• Read the introduction to dbt.
• Read the dbt viewpoint.

Demo

This blog post is accompanied by the dbt_jaffle_shop_historized project which provides a working prototype for a minimal dbt project centered on order status changes.

The project contains the implementation for the historized dbt macro used for keeping track of the order status changes in the lifecycle of orders as well as corresponding dtspec (data transformation specification) tests used to ensure the accuracy for the dbt macro.

dbt historized macro

dbt offers the possibility of using macros. Macros are pieces of code that can be reused multiple times - same as functions in other programming languages.

By means of using a specialized macro for the historization functionality, the complexity of building the historization queries is fully abstracted and the readability of the query used for historizing the status changes is greatly simplified:

{{
    config(
        materialized = 'historized',
        primary_key_column_name = 'order_id',
        valid_from_column_name = 'updated_at',
        load_id_column_name = 'load_id'
    )
}}

select
        load_id,
        order_id,
        updated_at,
        status
from {{ ref('stg_orders') }}

As can be seen in the code snippet above, same as a function, the historized macro takes a few parameters:

• primary_key_column_name: the name of the column used to identify the staged entity
• valid_from_column_name: the name of the column containing the timestamp when the staged entity has been last updated.
• load_id_column_name: the name of the column containing monotonically increasing sequence values used for distinguishing the precedence between order status changes that happen within the same timestamp.

Behind the scenes, the logic encapsulated in the historized dbt macro follows the steps mentioned below:

• create a temporary table (suffixed by __tmp) which contains the staged entries along with md5_hash column containing hash of the concatenated columns used for historization (e.g. : status in case of this example, but nothing speaks agains historizing more columns on an entity). The hash column can be used to easily distinguish whether two adjacent entries (ordered by load id) are duplicated (have the same values for the versioned columns). For more information on hashing, read on The most underutilized function in SQL dbt blog post.
• in case whether there are new entries staged (from the __tmp suffixed source table) that correspond to an unbounded historized entity (valid_to column is NULL) in the target table, then set the upper bound column valid_to to the value corresponding to the minimum valid_from value of the staged entries corresponding on the target entity
• deduplicate the staged entries (based on the md5_hash column)
• obtain the validity range for each of the staged records (valid_from, valid_to)
• join the staged records with the records from the target table and filter out eventual duplicates (based on md5_hash)
• insert the staged records in the target table.

For more information on dbt macros:

• Read the introduction to Jinja macros.
• Read about the dbt materializations and their corresponding implementation on Github.

Data tranformation testing

It takes quite a while to develop a dbt macro and afterwards it needs to be tested whether it works. It may even happen that while it is productively used, a bugfix needs to be done or that the functionality of the macro needs to be extended. By means of using automated tests for data transformations there could be ensured that the macro works as expected with an extensive battery of tests on a test environment.

dtspec is an open-source framework written in Python which can be used for specifying and testing data transformations.

Within dtspec is specified in a yaml format:

• the source data in the table(s) to be used by the data transformation(dbt)
• the expected data from the target table(s).

dtspec framework offers means to read the yaml specification, and match the data from the actual tables, once the data transformation has been performed (via dbt) with the data from the specification scenario.

Below is presented a snippet of the output used for running the tests on the project dbt_jaffle_shop_historized which accompanies this blog post:

Executing test specification tests/demo-spec.yml
Truncating data from the tables ['raw_orders', 'fct_orders']
Inserting input data into the source table raw_orders
/home/findinpath/dbt_jaffle_shop_historized/tests/..
Running with dbt=0.18.1
Found 2 models, 11 tests, 0 snapshots, 0 analyses, 148 macros, 0 operations, 1 seed file, 0 sources

21:51:29 | Concurrency: 4 threads (target='dev')
21:51:29 |
21:51:29 | 1 of 2 START table model jaffle_shop.stg_orders...................... [RUN]
21:51:31 | 1 of 2 OK created table model jaffle_shop.stg_orders................. [SUCCESS 1 in 2.02s]
21:51:31 | 2 of 2 START historized model jaffle_shop.fct_orders................. [RUN]
21:51:35 | 2 of 2 OK created historized model jaffle_shop.fct_orders............ [SUCCESS 1 in 4.39s]
21:51:36 |
21:51:36 | Finished running 1 table model, 1 historized model in 10.58s.

Completed successfully

Done. PASS=2 WARN=0 ERROR=0 SKIP=0 TOTAL=2
Loading data from the target table fct_orders
Loading actuals for target fct_orders
Asserting Building fct_orders out of the raw_orders when the fct_orders table is empty: Basic full refresh loading of the historized fact table `fct_orders`
Tested scenarios: - order1 : the expected historized entries should follow the representation: placed > shipped > completed - order2 : the expected historized entries should follow the representation: placed - order3 : contains duplicated (with the same `updated_at` and `status` values) entries. The duplicates should be filtered out from the processing. The expected historized entries should follow the representation: placed > shipped > return_pending
 PASSED

As can be seen from the log snippet above, there are several steps performed:

• the source & target tables for the data transformation are truncated to make sure that the execution of the tests is fully repeatable.
• input data is inserted in the source table(s)
• dbt is executed for performing the data transformation on the: jaffle_shop.stg_orders, jaffle_shop.fct_orders models.
• the actual data from target tables of the test specification is loaded and is used in asserting the equality with the content of the columns mentioned in the target table from the test specification

NOTE : When running the tests for this project, there can be noticed that it takes quite some time to execute them. This happens in part because Snowflake takes roughly a bit under a second to run any kind of query, even if the query is performed on an empty database.

Nevertheless, having automated tests for the dbt models, even though they are slow, is much better than doing the tests by hand or not doing them at all and leaving production as a playground for the developed models.

Feedback

This blog post serves as a proof of concept for historizing database entities with dbt. Eventual improvements to the dbt_jaffle_shop_historized project code or ideas regarding alternative ways to historize changes on the database entities are very much welcome.
